A-3105C Ventilation Louvres

  • A-3105C
  • 3D VIEW

A-3105C

3D VIEW

Continuous line ventilation louvres offering excellent airflow and a degree of rain defence.

null
null

INTAKE

null

EXHAUST

  • null
    Simple blade design affords excellent airflow and low pressure drop
  • null
    Hidden mullions for continuous blade appearance on the façade
  • null
    Easy to install solution, delivered to site in component form
  • null
    Optional perimeter flashings and cill pan can be supplied
View 3D Model
Download Data Sheet
View Test Data

KEY FEATURES

  • Blade Orientation: Horizontal
  • Mullion Type: Hidden
  • Louvre Depth: 128mm
  • Blade Pitch: 75mm
  • Weight: 11kg/m2 based on a 2m x 2m module size

Download data sheet for sectional details

Download Data Sheet

PERFORMANCE

SUMMARY
  • Rain Penetration Class: D up to 3.5m/s
  • Airflow Class: 1 (entry & discharge)
  • Airflow Coefficient Ce (entry): 0.440
  • Airflow Coefficient Cd (discharge): 0.434
  • K factor (entry / discharge): 6.250 / 5.309
null
null

INTAKE

null

EXHAUST

WIND DRIVEN RAIN PERFORMANCE (EN 13030:2001)
Core Ventilation Rate (m/s)0,00,51,01,52,02,53,03,5
Penetration Class (13m/s & 75mm/hr)DDDDDDDD
Effectiveness (%)63,953,545,739,734,028,323,418,3
AirflowCoefficient of Entry Ce0,400Class 1Coefficient of Discharge Cd0,434Class 1
RESISTANCE TO AIRFLOW

RESISTANCE TO AIRFLOW – ENTRY (Ce)2

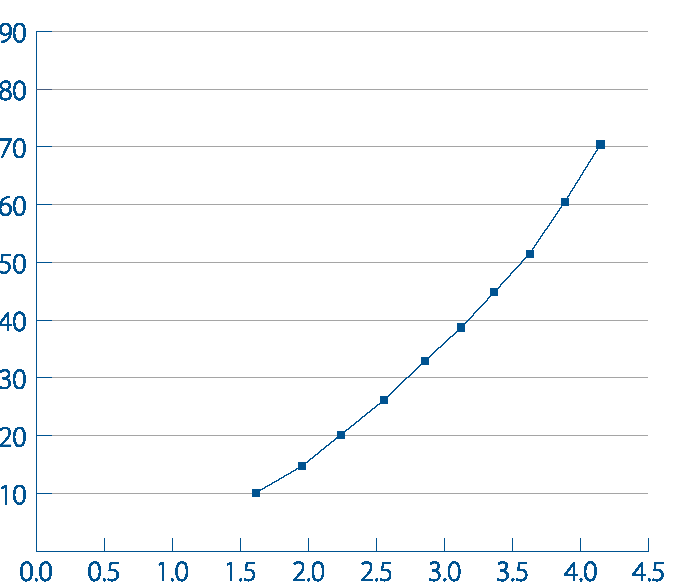

RESISTANCE TO AIRFLOW – DISCHARGE (Cd)2

Note: Based on a 1m x 1m size. Smaller louvres may have a higher Pressure Drop.

MATERIALS & FINISHES

MATERIALS
  • Aluminium alloy 6063-T6
FINISH OPTIONS
  • Finition laminée
  • Clear or colour anodised
  • Polyester powder coated Matt (standard) or gloss

OPTIONAL EXTRAS

  • Perimeter flashings and cill pan
  • Blanking panels (single skin or insulated)
  • Bird / vermin guards, insect mesh
  • Louvred doors
  • Dampers
View all accessories
