- Acrovyn PVC-Free

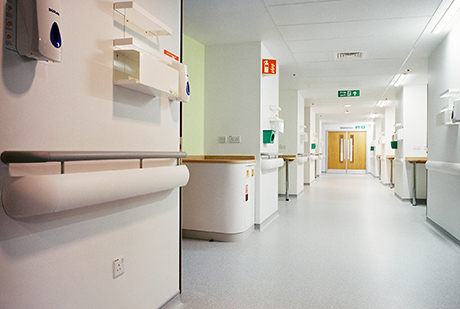

220mm high, HRB-50N combines a PVC-Free handrail and crash rail on a stainless steel bracket to provide mobility support and impact protection.
- Heavy Duty
- BS 8300 Compliant
- Dual Colour
- Code compliant hand/crash rail for busy circulation areas
- 40mm Ø handrail with textured cover over aluminium retainer for secure, comfortable grip
- 127mm high crash rail with curved cover over continuous aluminium retainer and shock-absorbing cushion for effective impact protection
- Infill strip closes off retainer channel for ease of cleaning
- Mounted on robust stainless steel brackets
- Solid Colours
Acrovyn PVC-Free (15)
Mounting
Colours & Finishes
- Solid Colours
Acrovyn PVC-Free (15)
Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.
Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.
Stock Lengths & Fixings
- Acrovyn PVC-Free: 3.0m
- Brackets at max. 800mm centres; fixing into studwork or pattresses is recommended
Accessoires
Various accessories are available to aid the installation of our products, or to enhance their look.
- End caps
- External corners
- Internal corners available for handrail part
- Stainless steel mounting brackets
- Vertical accent trims/ collars (optional) – handrail: clear; crash rail: Black
