HRB-4C Hand/Crash Rails

  • HRB-4C
  • 3D View

HRB-4C

CS Acrovyn HRB-4C Hand/Crash Rail

3D View

  • null
    Acrovyn & Acrovyn PVC-Free

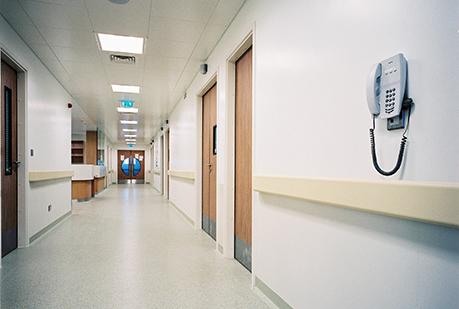

140mm high hand/crash rail in a classic, flat profile, offering severe duty impact protection and mobility support in circulation routes.

  • null
    Severe Duty
  • null
    Quick Lock
  • Comfortable grip handrail top
  • Free-floating cover flexes on impact, neutralising its force
  • Continuous shock-absorbing cushion for increased impact protection
  • Quick Lock brackets for fast installation and easy maintenance
  • Infill strip closes off retainer channel for ease of cleaning
  • Anti-ligature option featuring continuous, powder coated aluminium bracket
  • null
    Solid Colours
    Acrovyn (27) | Acrovyn PVC-Free (15)
DEMANDER UN ÉCHANTILLON

Jump to

MOUNTING OPTIONS
COLOURS & FINISHES
DOWNLOADS
ACCESSORIES

Options d'installation

  • null
    Acrovyn
    HRB-4C – QUICK LOCK
    HRB-4CAL – ANTI-LIGATURE
  • null
    Acrovyn PVC-Free
    HRB-4CN – QUICK LOCK
    HRB-4CALN – ANTI-LIGATURE

QUICK LOCK

ANTI-LIGATURE

What is Quick Lock?

CS’ sturdy and efficient fixing system makes the installation of Acrovyn Hand/Crash Rails a simple, clean process.

How does it work?

The unique cam lock on the bracket simply slots into the back of the retainer, and the profile is locked or unlocked with the twist of a spanner. This allows faster installation, but also enables fast removal for maintenance, without compromising the integrity of the wall fixings.

Avantages :

  • No more drilling holes in the retainer
  • No more struggling with component alignment
  • Ease of bracket location and attachment
  • Allows for pre-assembly of retainer, cover and end caps off-site
  • Allows for easy maintenance
  • Offers long term savings

Colours & Finishes

  • null
    Solid Colours
    Acrovyn (27) | Acrovyn PVC-Free (15)
  • Acrovyn (27)
  • Acrovyn PVC-Free (15)

Acrovyn (27)

Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.

Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.

Acrovyn PVC-Free (15)

Due to the limitations of print and computer screens, actual colours may vary. We recommend making any colour selections from our free of charge samples service.

Approximate LRV values for CS Acrovyn colours and finishes have been determined using the CIE Y value measurement method.

Stock Lengths & Fixings

  • Acrovyn: 4.0m
    Acrovyn PVC-Free: 3.0m
  • Brackets at max. 800mm centres; fixing into studwork or pattresses is recommended

Accessoires

Various accessories are available to aid the installation of our products, or to enhance their look.
  • End caps
  • External corners
  • Quick Lock brackets (standard)
  • Anti-ligature brackets (optional)
  • Vertical accent trims (optional) – Black (standard) or Light Grey
  • Removable kit for service ducts

Acrovyn®

CS Acrovyn Brochure (UK-EN)_Page_01
  • Guide de sélection produits
  • Informations techniques détaillées
